Megan 32Level EU Series Coilover Springs For 09-14 Mazda 2 DE /10-19 Ford Fiesta

Application:
For 2009-2014 Mazda 2 (DE Third Generation)
For 2010-2019 Ford Fiesta (Sixth Generation)

Install Note:
Due to the use of front pillowball camber plates. Excessive suspension and road force noise will be transmitted into the driver cabin. It is in the nature of this series of coilover system

Description & Feature

Our Track Series Coilover System for the Mazda 2/Ford Fiesta has been specifically tailored for aggressive track use with noise insulation and street comfort becoming less of a priority. Aggressive spring rates and valving provide superior dynamic control specifically with the use of higher grip track day tires. Adjustable front pillowball camber plates also provide an extra option for fine tuning the vehicle's handling characteristic ensuring optimal tire contact patch under all conditions.

Featuring 32 levels of damper force adjustment, camber adjustable pillowball front top mounts and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills.

Height adjustments are made with separate CNC Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.

• Material: CNC Machined Steel and Aluminum Construction
• Color: Silver
• Surface Finish: Anodized
• Style: Track Series
• Full Length Adjustability, Adjustable Ride Height
• Monotube Internal Single Cylinder Construction
• 32-Levels of Damper Compression & Rebound Simultaneous. Wide-Range Adjustable Ride Height
• Front Spring Rate: 8 kg/mm
  Rear Spring Rate: 14 kg/mm (Competition Spring Rates)

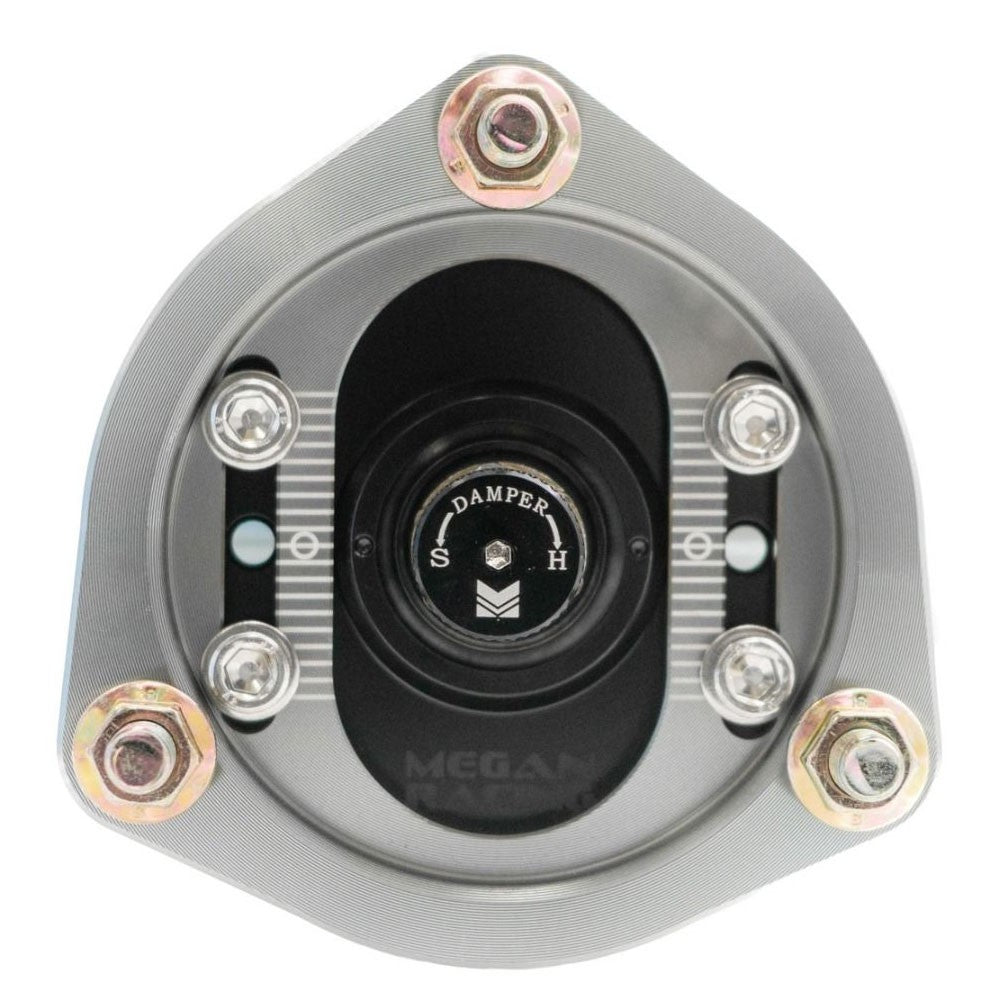

• Camber Adjustable Pillowball Front Top Mounts

Product Content:

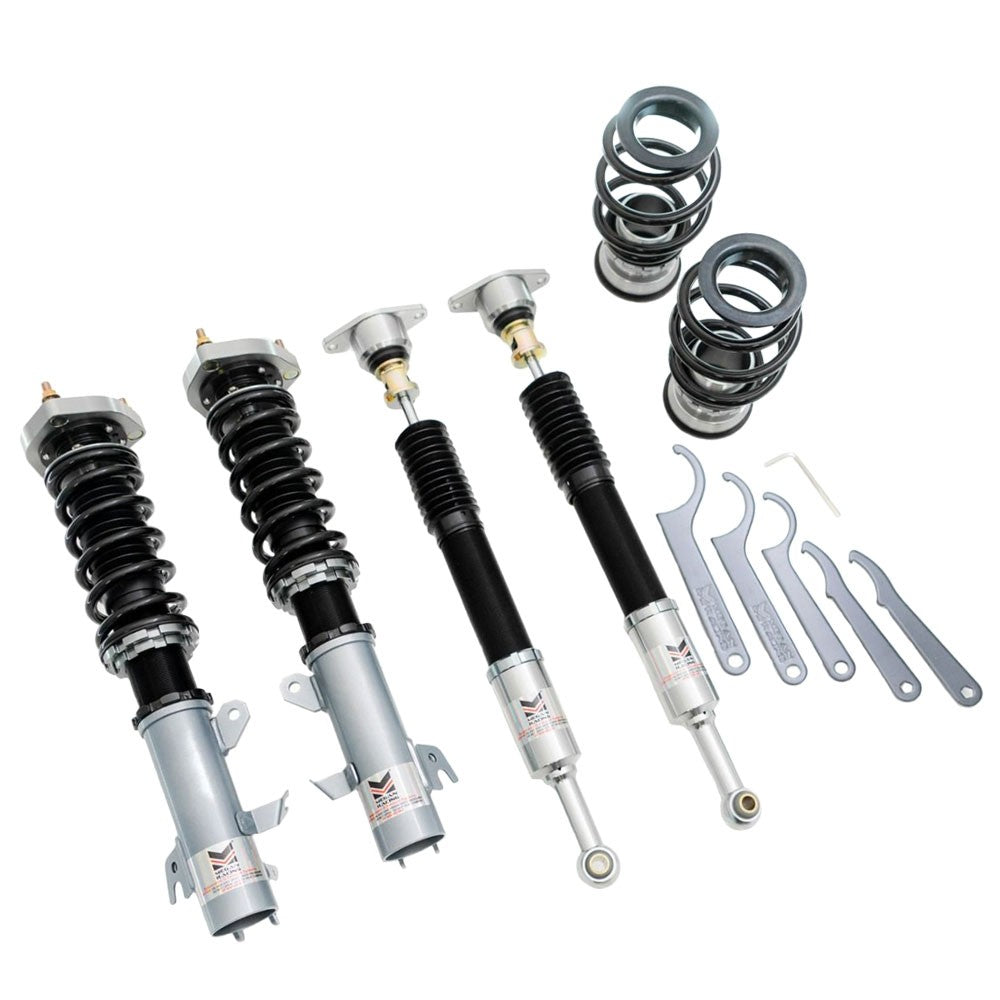

1 x Set of Coilover Springs Kit (2 Front + 2 Rear)

No Instruction, Professional Install Recommended

Cross Reference Number:
MR-CDK-M210-TS, MR-CDK-M210-TS, MRCDKM210TS
