Hybrid 50/50 Recirculate Red Aluminum Body Bolt-On Blow Off Valve 30 PSI For Subaru 05-09 Legacy Blue

Application:
For 2005-2009 Subaru Legacy

Install Note:
This is not a direct bolt-on item for stock engine setup, Minor modifications or adjustments may be needed for this Blow Off Valve. Installation instruction not included. Professional installation strongly recommended for high performance/racing automotive parts. Please excuse us from any possible typos and unintentional misinterpretations. You are more than welcome to contact us for questions and concerns. Thank you!.

Description & Feature
The Blow-Off valve (BOV) is a pressure relief device on the intake tract to prevent the turbos compressor from going into surge. When the throttle is closed rapidly, the airflow is quickly reduced, causing flow instability and pressure fluctuations. Surge can eventually lead to thrust bearing failure due to the high loads associated with it. Blow-Off valves use a combination of manifold pressure signal and spring force to detect when the throttle is closed. When the throttle is closed rapidly, the BOV vents boost in the intake tract to atmosphere to relieve the pressure, helping to eliminate surge.

• Material: Aluminum Body
• Color: Red
• Finish: Anodized
• Style: Bolt-On
• Holds Up to 30 PSI Boost Pressure
• 2.00" Diameter Housing (2.25" Overall Width)
• 2-Bolts Mounting Design
• Draw In Surrounding Air And Release A Unique Discharge Sound
• High-Quality Diaphragm And Short Stroke Significantly Increase Response
• Weldable Aluminum Flange, Anodized Aluminum Top Finish
• Easy to Remove Locking Collar for Fast Spring Changes

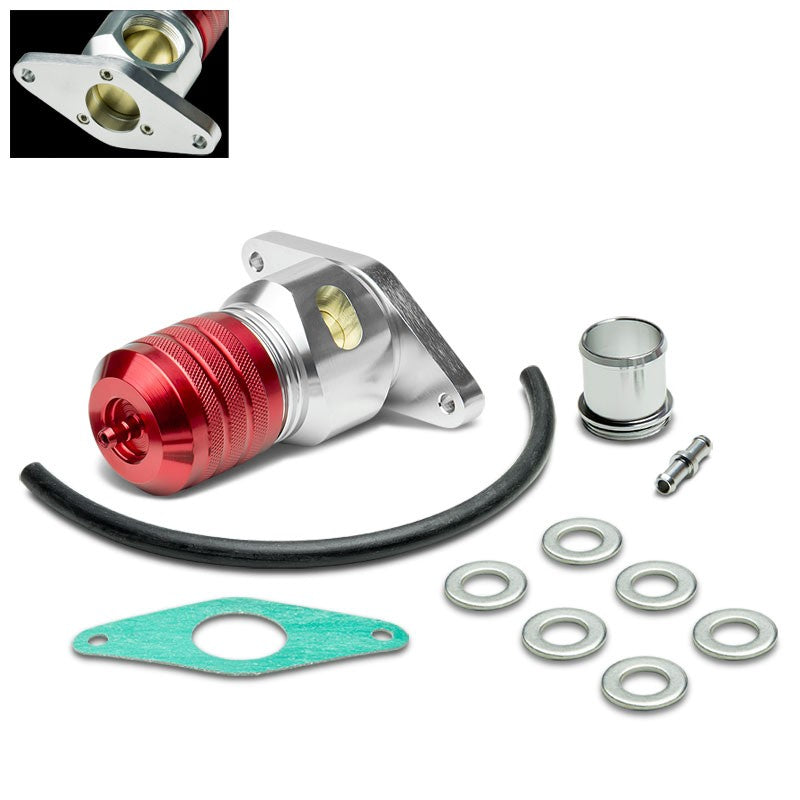

Product Content:
1 x Type-2 Blow Off SQV Valve Kit
1 x SSQV BOV Adapter Flange
Hardware if Any is Shown in the Picture Above

No Instruction, Professional Install Recommended

Cross Reference Number:
BFC-BLOV-WRX08-TY2-RD
