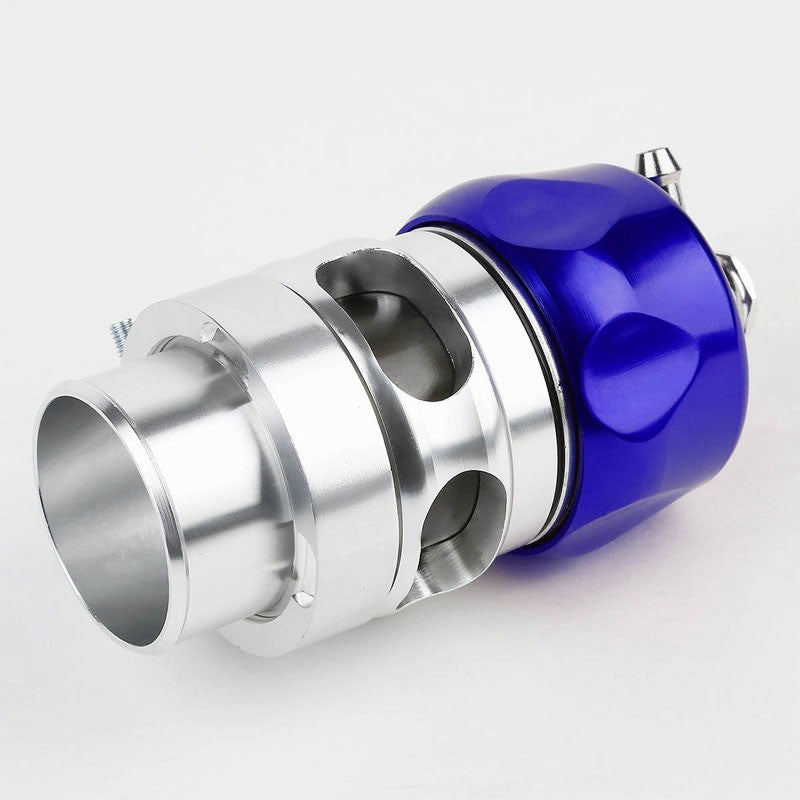

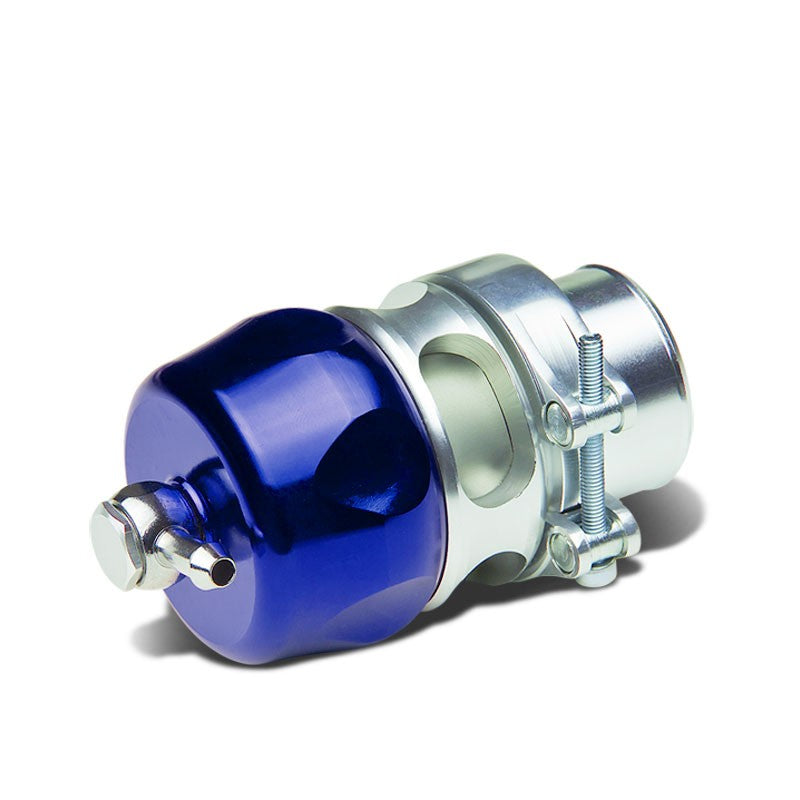

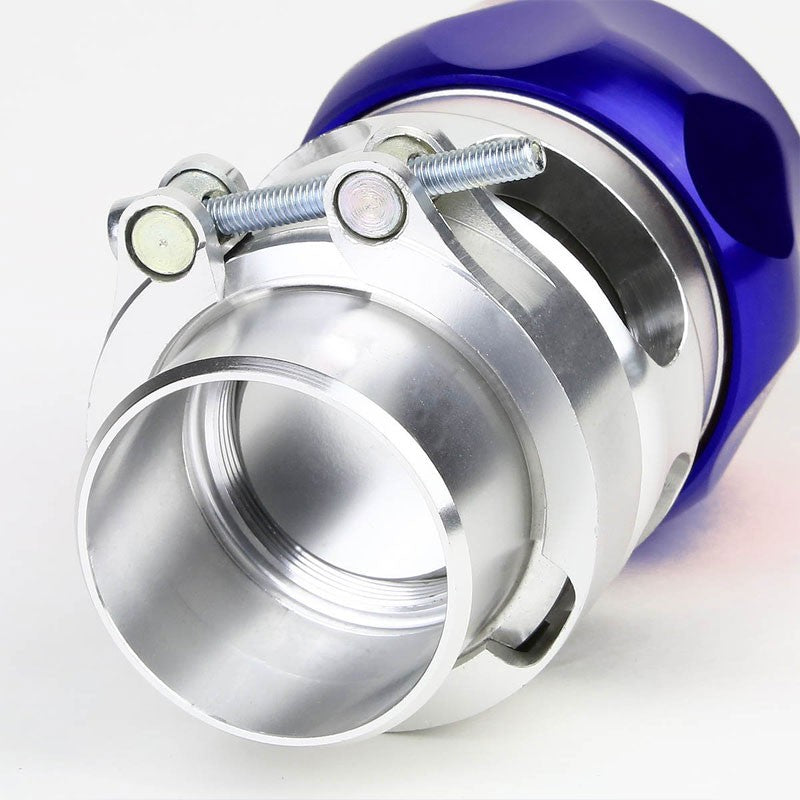

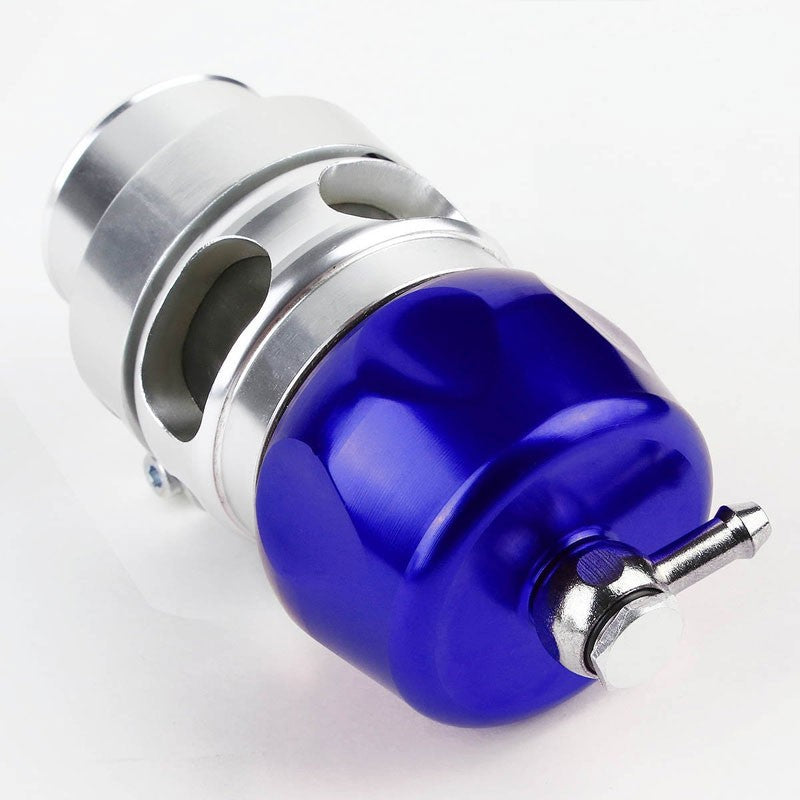

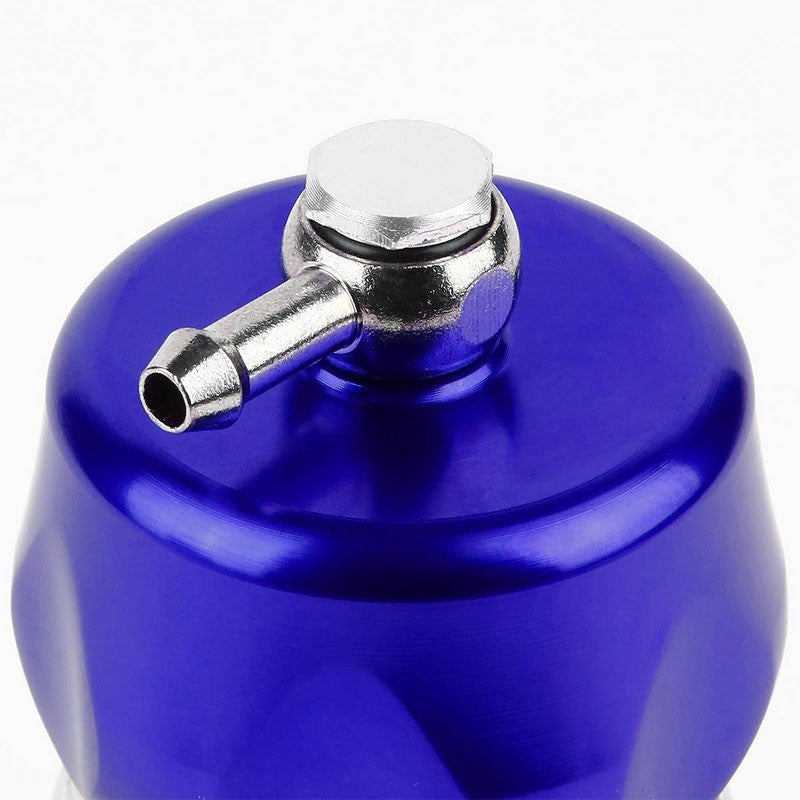

Universal Blue Aluminum Body V-Band Blow Off Valve 20 PSI 35mm Flange

Application:
Universal Application, Great for All Turbo Upgrade

Install Note:
Welding required to install flange onto Piping

Description & Feature
The Blow-Off valve (BOV) is a pressure relief device on the intake tract to prevent the turbo compressor from going into surge. When the throttle is closed rapidly, the airflow is quickly reduced, causing flow instability and pressure fluctuations. Surge can eventually lead to thrust bearing failure due to the high loads associated with it. Blow-Off valves use a combination of manifold pressure signal and spring force to detect when the throttle is closed. When the throttle is closed rapidly, the BOV vents boost in the intake tract to atmosphere to relieve the pressure, helping to eliminate surge.

• Material: Aluminum Body
• Color: Blue
• Finish: Anodized
• Style: Universal
• Holds Up to 19-21 PSI Boost Pressure
• 38MM Fitting Base
• V-Band Flange Type, 35mm Flange Diameter
• High-Quality Diaphragm And Short Stroke Significantly Increase Response
• Tool Free Pressure Adjustment. Turn Cap Clockwise To Increase Pressure. Counter Clockwise To Decrease.
• Adjustable Spring System Promoted Response And Allows For High Boost Pressures
• V-Band Adapter For Easy Removal

Product Content:
1 x Blow Off Valve
V-Band Clamp
38mm Hose/Weld-On Adapter

No Instruction, Professional Install Recommended

Cross Reference Number:
BFC-BLOV-38MM-BL
