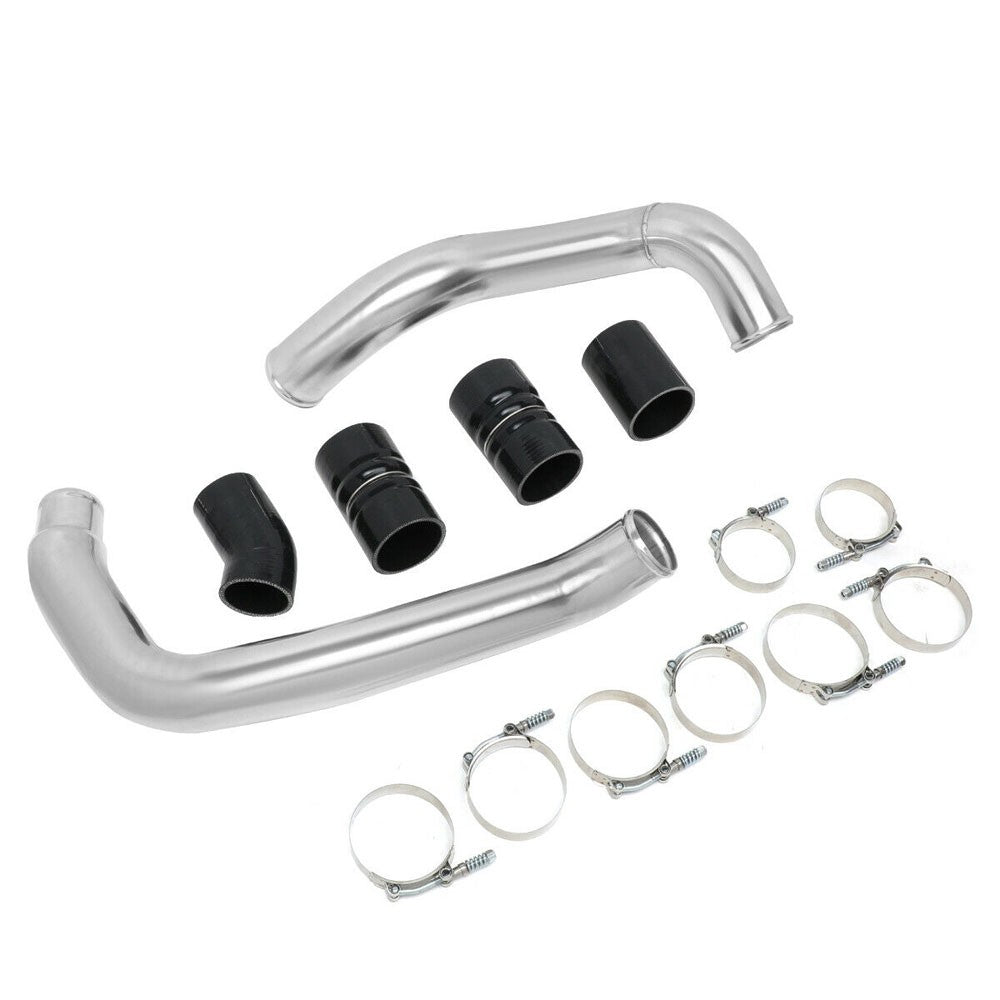

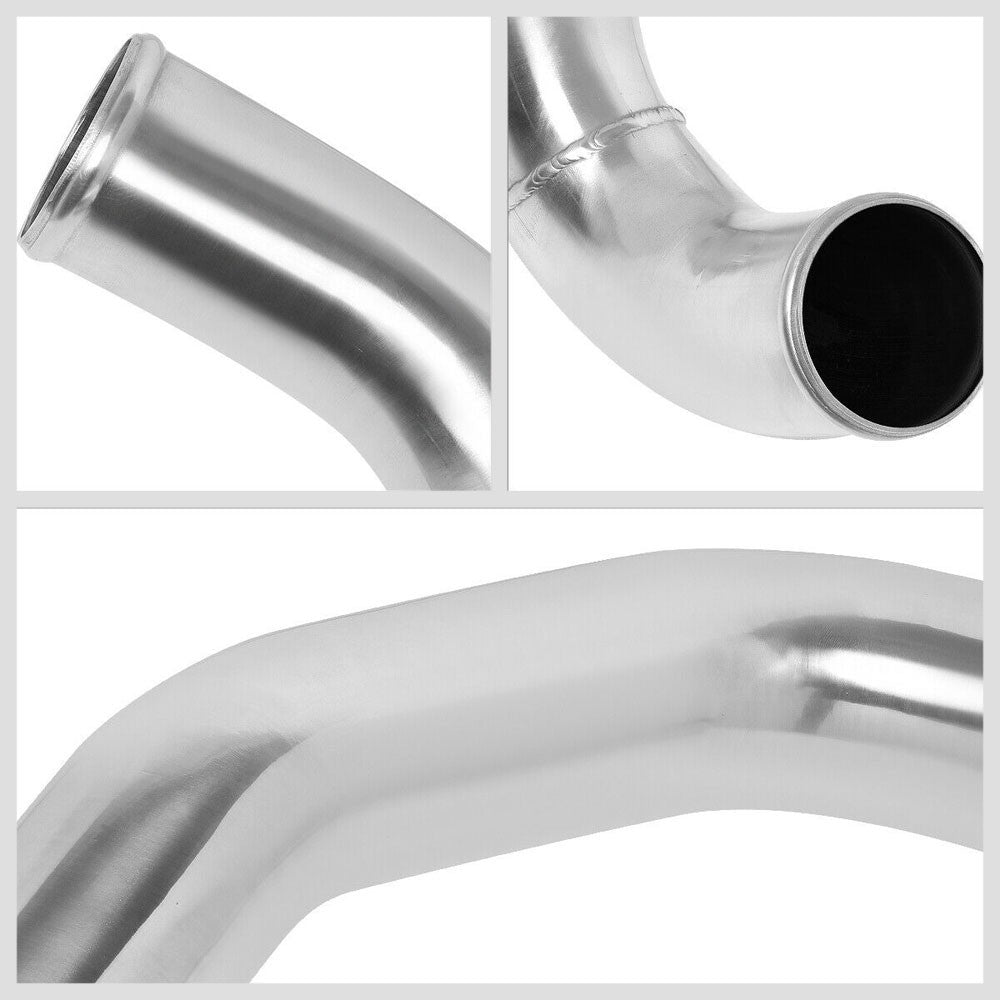

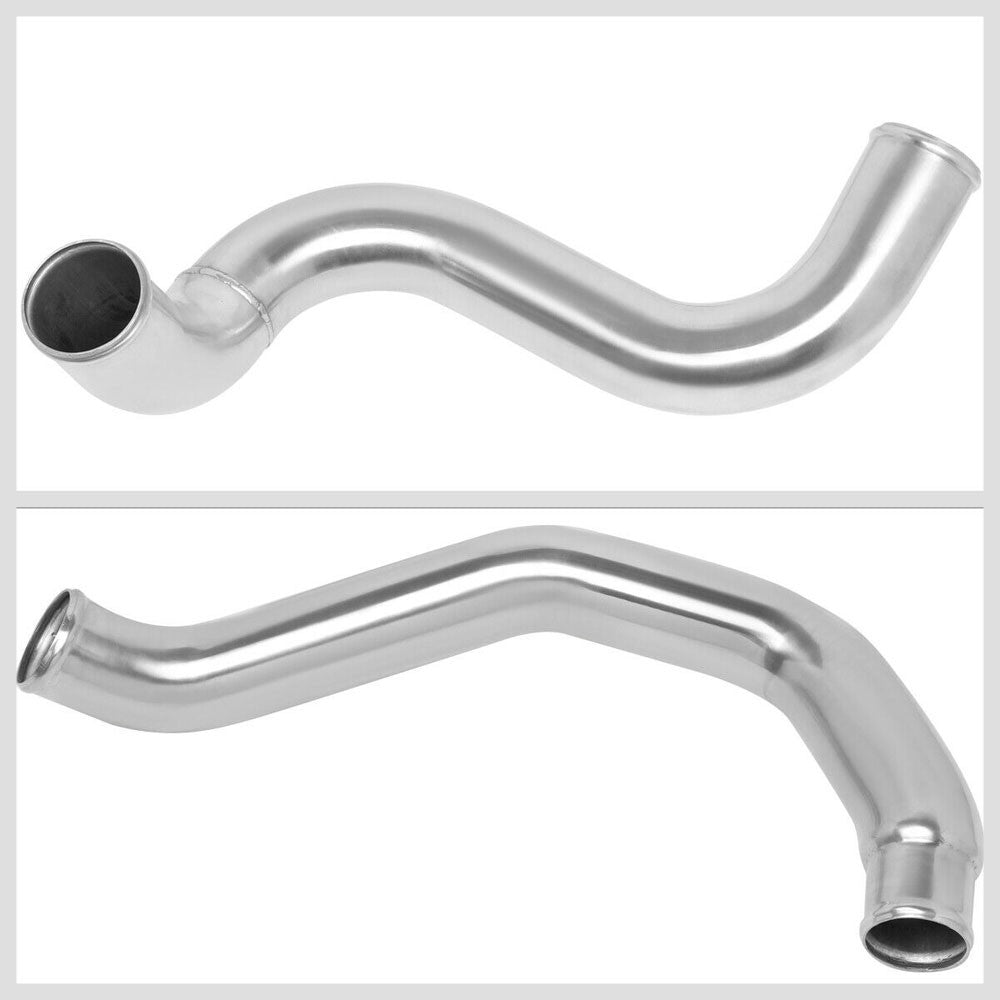

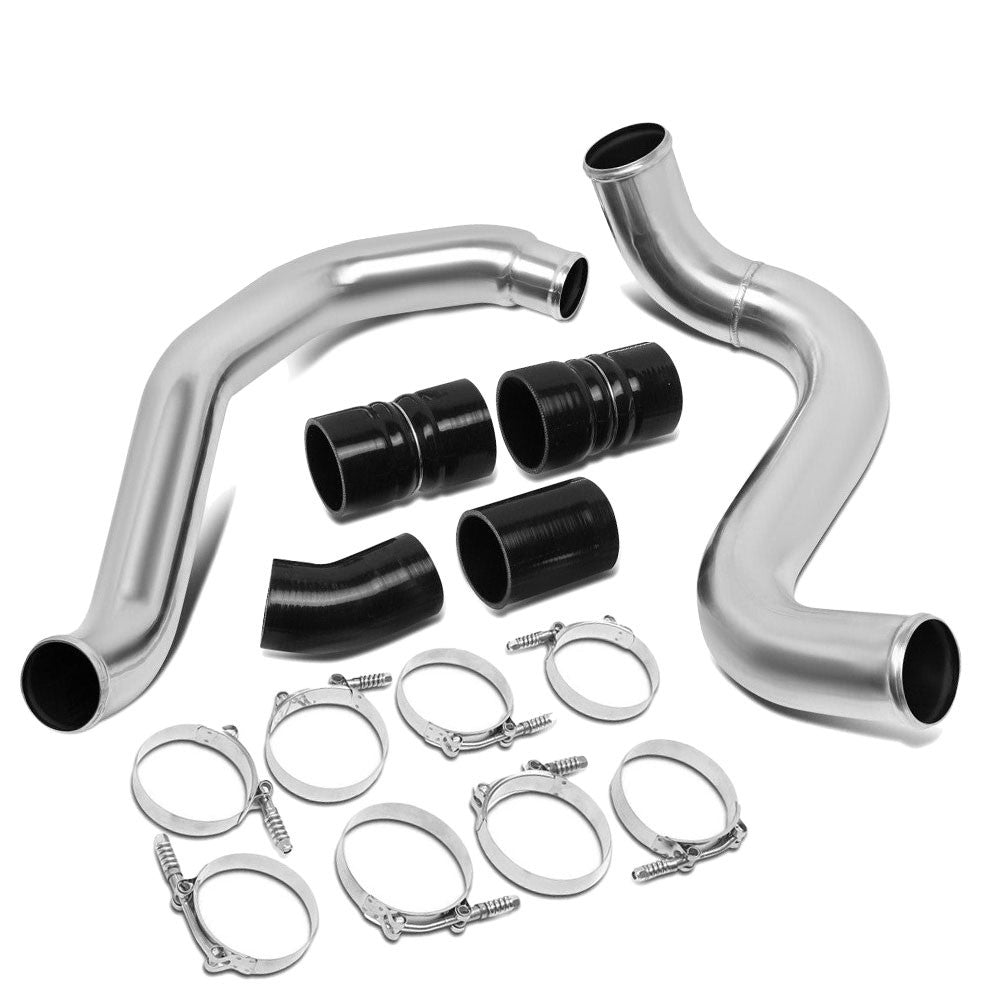

Intercooler Turbo Pipe Boot Kit For 03-07 Ford F-Series Super Duty 6.0 V8 Diesel

Application:
For 2003-2007 Ford F-250 Super Duty
For 2003-2007 Ford F-350 Super Duty
For 2003-2007 Ford F-450 Super Duty
For 2003-2007 Ford F-550 Super Duty

Remark:
Fit 6.0L V8 Turbo Diesel Model ONLY

Description & Feature
When the charged air enters the end tank, it travels through the tubes of an Intercooler, in which the heat is transferred via fins, where cooler ambient air passes over the tubes. This mechanism further removes heat from air before exiting the opposite end tank and routing to the engine. Bar and Plate Intercooler functions identically to the Tube and Fin Core, with the exception that, charged air travels through its rectangular shaped passages, which have more surface area; thus, improves cooling effect and power of the charged air. The advantage of this type of intercoolers is that, since the bar and plate core affords up to 35% larger surface area for cooling, a physically smaller intercooler can be used and still retains the cooling efficiency of a larger tube and fin design. This is important for a builder who has a vehicle with a compact opening in the front of it or when there are immovable obstructions present.

• Material: Aluminum Pipe / Silicone Hose
• Color: Metallic
• Surface Finish: Natural
• Style: Bolt-On Style

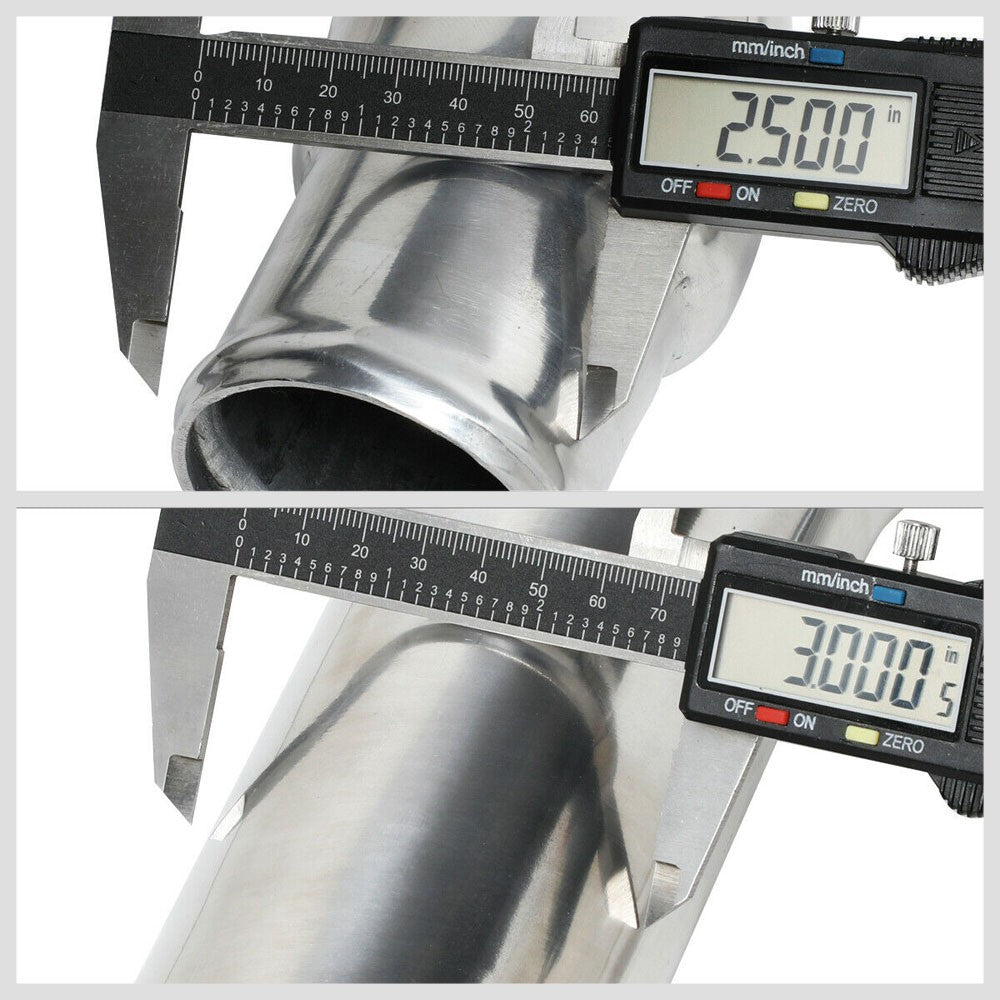

• Piping Info: 3.00" OD Piping
• Direct Replacement for Factory Piping
• Powder-Coated Surface Finish on Piping
• Increase 65% Air Flow comparing with other Standard Piping

Product Content:
1 x Intercooler Pipe Kit
Hardware (Hose/Clamp) If Any is Shown in the Picture Above

No Instruction, Professional Install Recommended

Cross Reference Number:
BFC-ITPK-Y008
