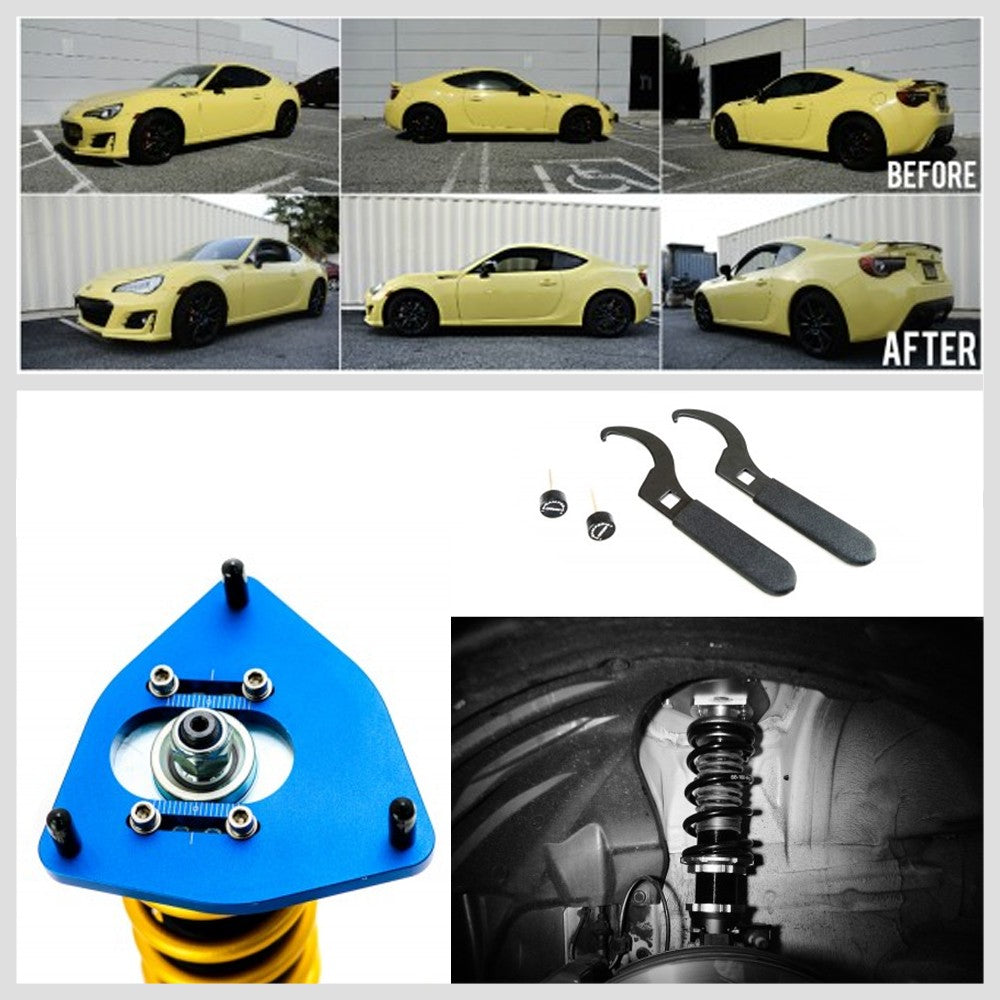

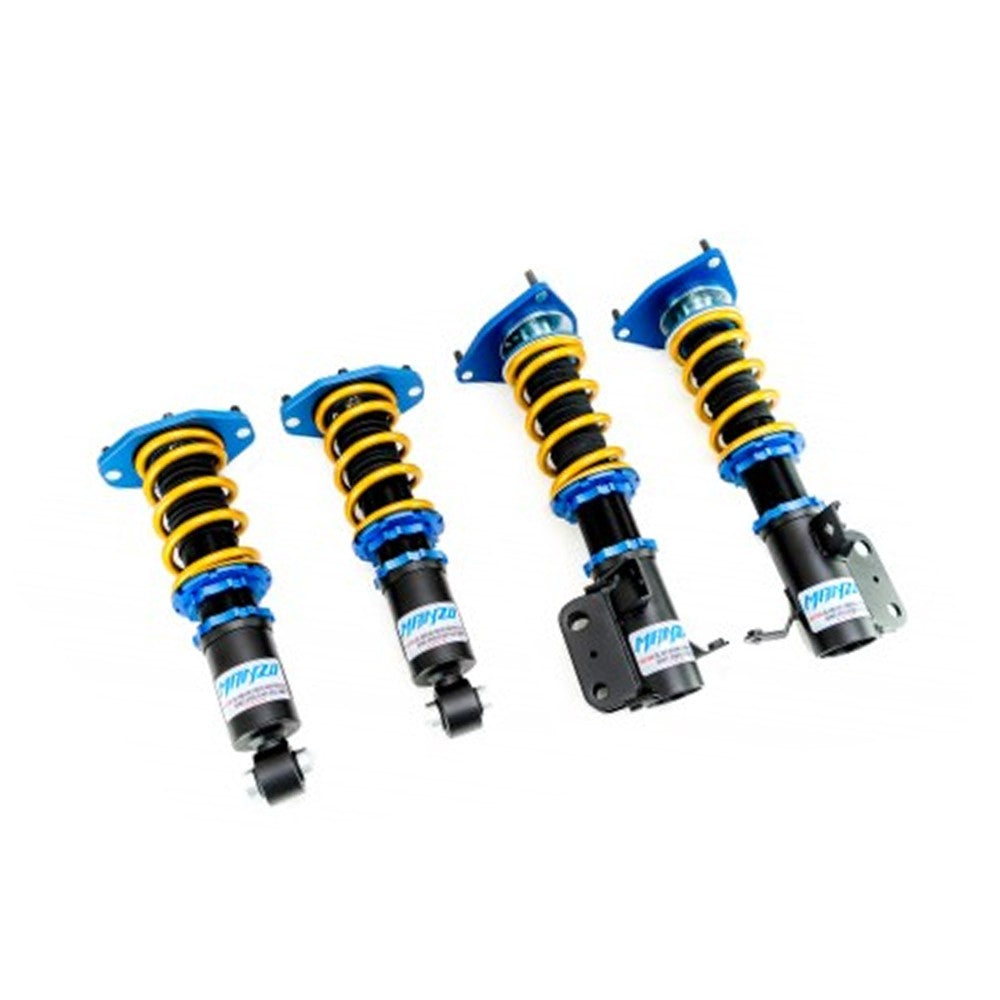

Manzo MZ Series 30-way Coilover Springs Kit For 13-20 FR-S BRZ 86 GT86 ZN6/ZC6

Our MZ-Series coilover system proves that you do not need to break the bank in order to obtain a quality suspension system. Designed for a purely street, sport set-up. Spring rates and valving have been designed to be conservative prioritizing ride comfort while still adequately controlling dynamic forces during aggressive driving. MZ-Series Coilovers Feature 30 levels of simultaneous compression and rebound damper force adjustment, camber adjustable pillowball front top mounts, rubber insulated rear top mounts and full-length shock adjustability. Spring preload is adjusted independently from the damper shock length adjustment allowing to retain full shock stroke at any given height and allowing for further suspension tuning to truly customize the vehicle overall handling feel.

Designed as a direct bolt-on unit. Manzo MZ-Series Coilovers are protected with a 1-year warranty against manufacturer defects.

• Material: CNC Machined Steel and Aluminum Construction
• Color: Black Shock, Blue Bracket, Yellow Spring
• Surface Finish: Powdercoated
• Type: Suspension Coilover
• Style: MZ Series
• Front Spring Rate: 6kg/mm
• Rear Spring Rate: 6kg/mm
• 30-way Compression & Rebound Simultaneous
• Camber Adjustable Pillowball Front Top Mounts
• Rubber Insulated Rear Top Mount
• Shock and Spring Separated Rear Setup
• Monotube Internal Construction
• Full Length Adjustability

Application:

For 2013-2016 Scion FR-S
For 2013-2020 Subaru BRZ (ZN6/ZC6 First Generation)
For 2017-2020 Toyota 86 (GT86 ZN6/ZC6 First Generation)

Remark:

Installation:

Product Content:

• 1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

The product does not come with manual/instruction, Professional Install Recommended

Cross Reference Number:

• MZ-CDK-SCFR12

All Manzo U.S.A. Exhaust and Suspension products are deemed for "off-road use only"- please check local laws regarding the modification of the exhaust systems by checking the vehicle code for your state. Many states are more stringent on exhaust modification laws and to pass SMOG. Please check your local laws.

All Manzo U.S.A. exhaust system components will alter and affect the vehicle's overall sound in pitch and volume. All to which is subjective in manner. Megan Racing will not claim responsibility and/or accept returns based on an individual's personal preference.

Recommended for Racing/Off-Road Use ONLY, Will Not Pass Emissions Test
