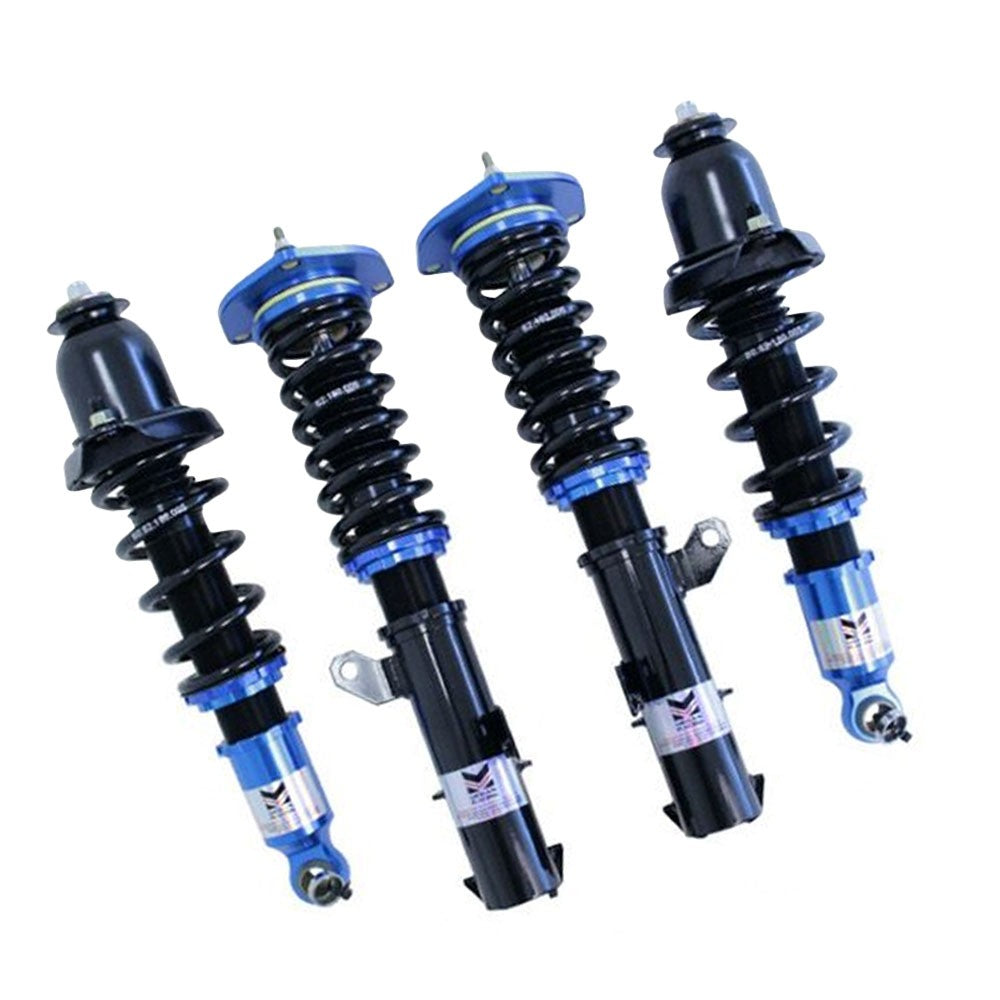

Megan Racing EZII Series Coilover Damper Springs Kit For 03-08 Corolla/Matrix

Application:
For 2003-2008 Toyota Corolla
For 2003-2008 Toyota Matrix (Des NOT Fit AWD & XRS Models)

Install Note:
This item will only fit the FWD MATRIX/COROLLA! On later Models, Toyota increased the diameter of the crash bolts that mount the lower bracket onto the spindle. For model year 2005+ Matrix' the holes on the lower bracket will need to be drilled out to match the size of the larger OEM hardware.

Description & Feature

Megan Racing EZII Series coilover system is aimed towards the more budget oriented enthusiast to offer the most basic essentials from an after-market coil-over setup, yet makes no compromises for quality and performance.

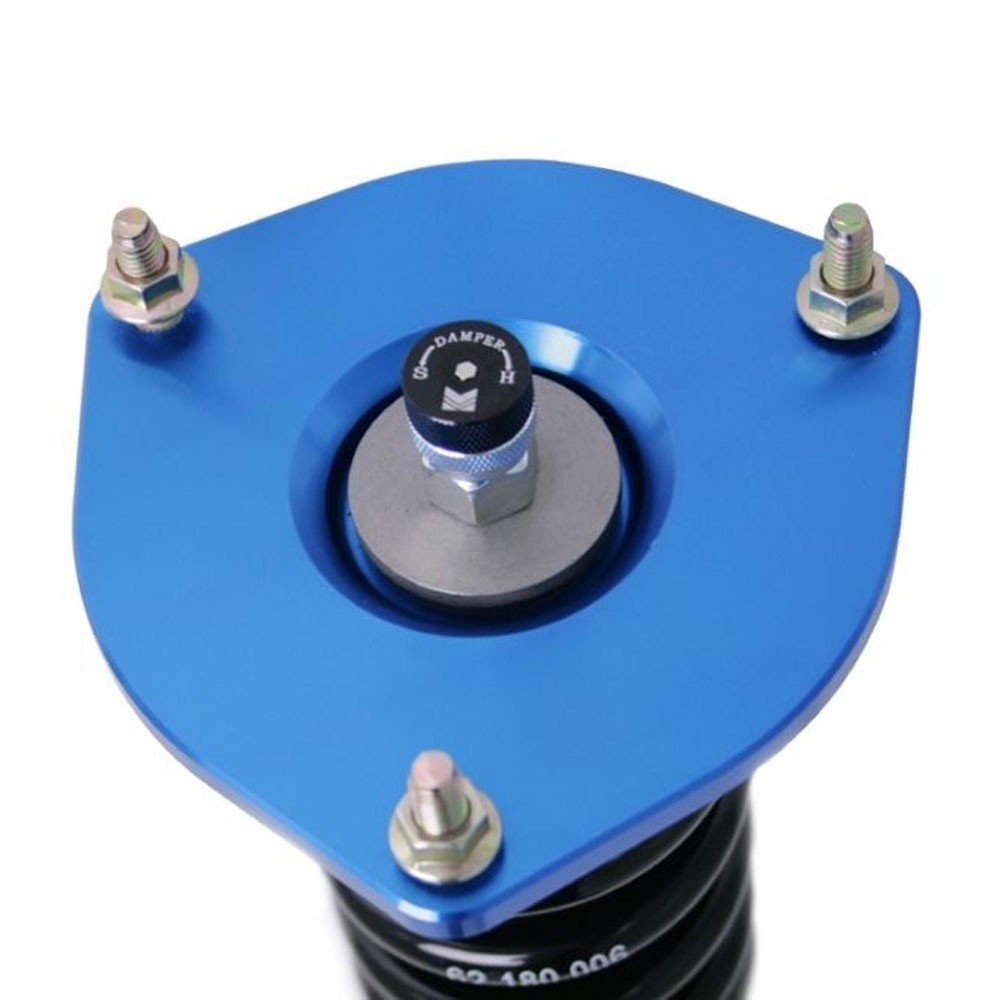

Our EZII Series coilover system has been developed prioritizing ride comfort for those who are seeking to increase the vehicle's exterior aesthetics while still retaining a nice ride. By using rubber front top mounts and OE factory rear mount, road noise is further insulated and kept away from the interior cabin. However with a slight increase of spring rates over stock and sport tuned shock valving, our kit is still more than capable enough for spirited driving or dare we even say track use.

Megan Racing EZII Series Suspension Systems are fully adjustable coilover systems which do not break the bank. With it's full length adjustable design, the vehicle's ride height can be adjusted without affecting the shock stroke ensuring a retained ride quality at nearly any height. Monotube internal shock construction separates the oil and hi pressured Nitrogen gas chamber preventing aeration. This allows for immediate shock response and damping consistency. 15-click damping force adjustability will also allow the user to fine tune the ride stiffness and response to his or her preference.

• Material: CNC Machined Steel and Aluminum Construction
• Color: Blue
• Surface Finish: Anodized
• Style: EZII Series
• Full Length Adjustability, Adjustable Ride Height
• Monotube Internal Single Cylinder Construction
• 15-Levels of Damper Compression & Rebound Simultaneous. Non Adjustable Front Camber. Aluminum Brackets paired with rubber inserts
• Front Spring Rate: 62mm ID; 180mm length; 6 kg/mm
  Rear Spring Rate: 62mm ID; 180mm length; 5 kg/mm (Conservative Spring Rate)
• Front Damper: 120mm stroke; 280mm length
  Rear Damper: 115mm stroke; 240mm length

Product Content:
1 x Set of Coilover Springs Kit (2 Front + 2 Rear)

No Instruction, Professional Install Recommended

Cross Reference Number:
MR-CDK-TCO03-EZII, MR-CDK-TCO03-EZII, MRCDKTCO03EZII
