Part Number:
MR-CDK-SI02-RS

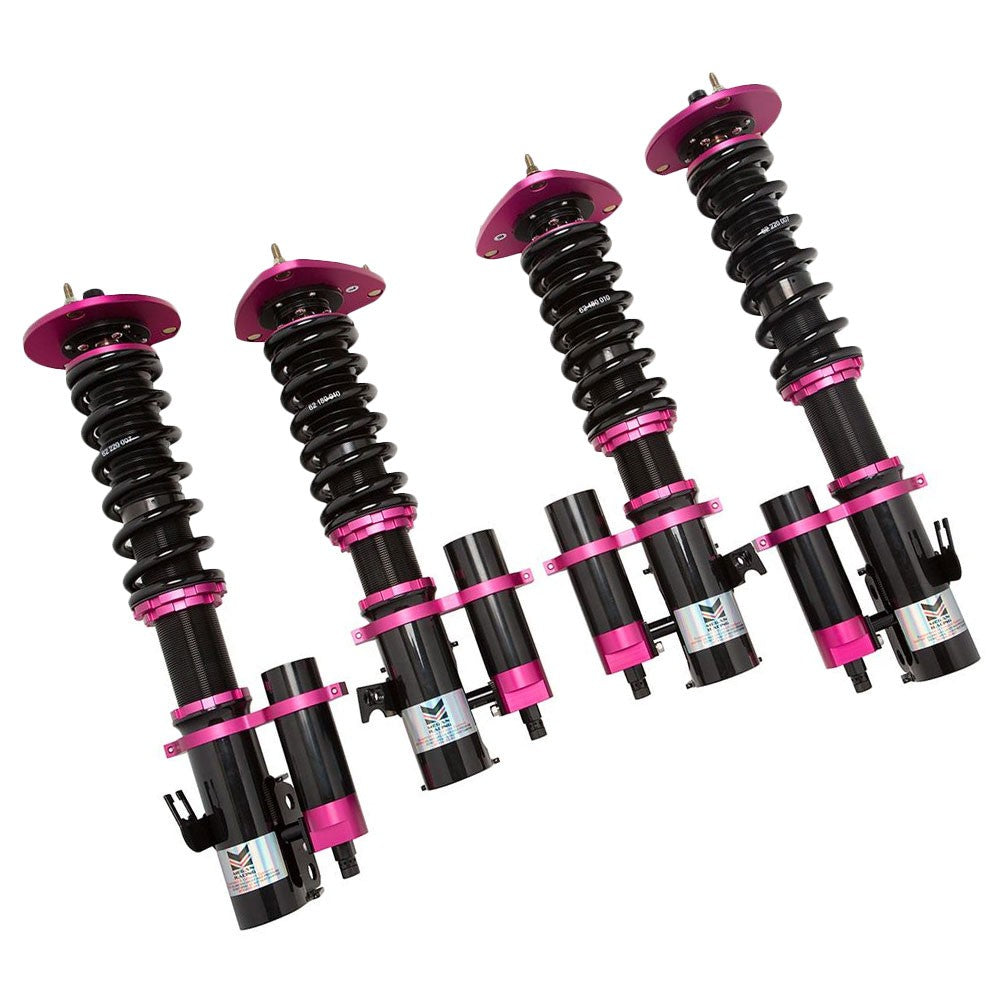

Megan Racing Spec-RS Series Coilover Damper Springs Kit For 02-07 Impreza WRX
$1,399.00$1,819.90
International Buyer: Shipping charge does not included Custom Charge and Brokerage Fee (Detail)
Reference Number
Application:
For 2002-2007 Subaru Impreza WRX Models
For 2004 Subaru Impreza WRX STi
Install Note:
Spec-RS will not be able to adjust to stock ride height due to the coil-over design. This coil-over system is design to lower your vehicle to extreme measures.
Description & Feature
Megan Racing introduces the new SPEC-RS Coil Over system features 32 levels of damper force adjustment, where compression and rebound adjustments are separate for increased tuning capability. The coil-over body also features separate spring perch adjustment and full shock height adjustment independent of spring pre-load to retain full suspension stroke while allowing the vehicle to be corner-balanced, which is often an integral part of suspension tuning as an aggressive alignment. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts for to reduce suspension deflection and camber plates are utilized for strut-type suspension applications.
Compression and rebound settings are easily adjusted through a individual adjustment knobs located at the top of the damper for rebound adjustment and on the external reservoir for compression adjustments. With a twist of the knob, adjusting compression and rebound settings are simple to tune according to your driving style and suspension setup whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.
Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows you to lowering your center of gravity to gain full potential of your vehicle's handling capabilities.

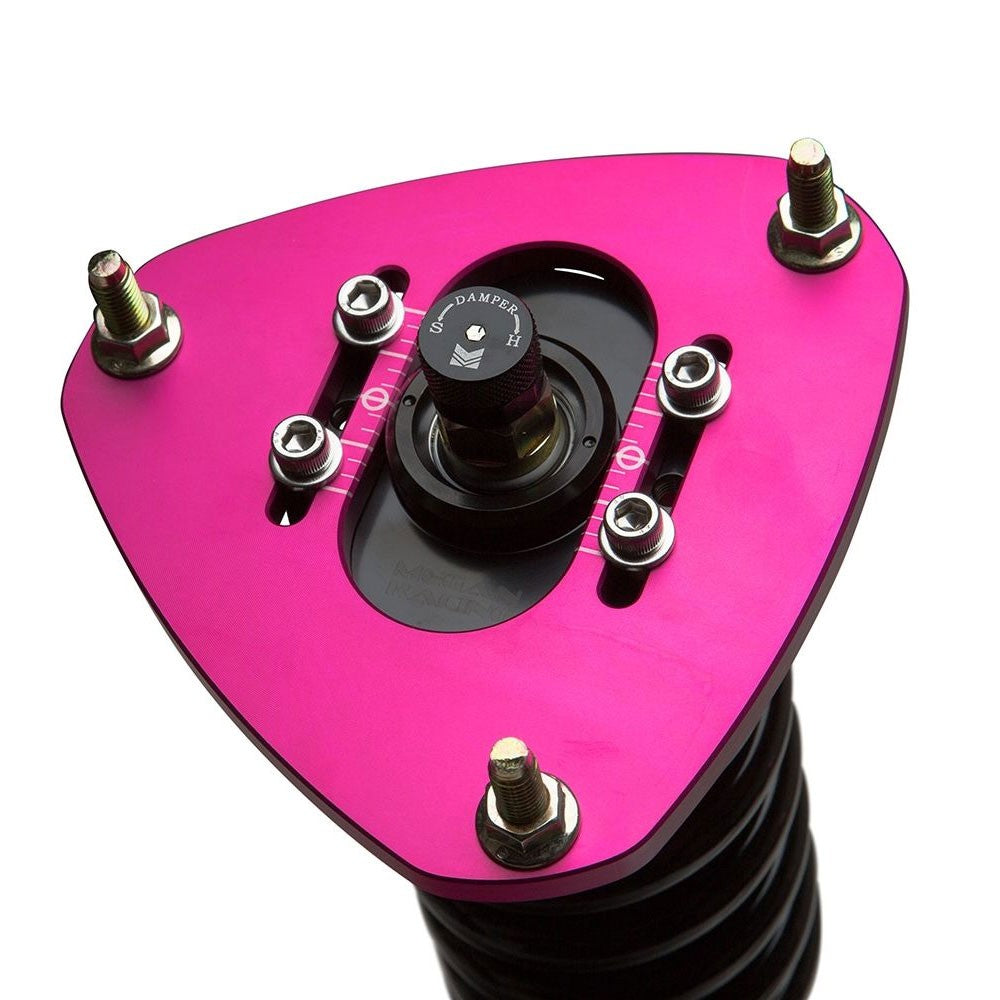

On applications utilizing strut-type suspension designs, the Megan Racing SPEC-RS Coil-over Damper Kits come with fully adjustable Pillow-Ball upper mount camber plates to easily tune and adjust your camber, giving you a competitive edge over other suspension setups. This allows you to tune your car for any ride height and still adjust camber to improve handling, vehicle predictability and tire wear, which is a great benefit both on the race-track and on the street.
The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which is then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.
- Material: CNC Machined Steel and Aluminum Construction
- Color: Pink
- Surface Finish: Anodized
- Style: Spec-RS Series
- Full Length Adjustability, Adjustable Ride Height
- Monotube Internal Dual Cylinder Construction. External Reservoir for additional oil capacity and compression adjustment
- 32-Levels of Damper Compression & Rebound Simultaneous. Pillow Ball Upper Mounts with Front Camber Plates
- Front Spring Rate: 10 kg/mm
Rear Spring Rate: 7 kg/mm (Aggressive Spring Rates)
Product Content:
1 x Set of Coilover Springs Kit (2 Front + 2 Rear)
No Instruction, Professional Install Recommended
