Megan Red Street Series Coilover Spring Kit For Gen1&2 FR-S BRZ ZC6 ZD8 GR86 ZN6 ZN8

Application:
Gen1
For 2013-2016 Scion FR-S
For 2013-2020 Subaru BRZ (ZC6)
For 2017-2020 Toyota 86 (ZN6)

Gen2
For 2022+ Subaru BRZ (ZD8)
For 2022+ Toyota GR 86 (ZN8)

Description & Feature

Megan Racing (Street Series) Coil Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, camber adjustable pillowball front top mounts and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills.

Height adjustments are made with separate CNC Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.

The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. All Megan Racing coilover kits are protected with a 1-year warranty against manufacturer defects.

• Material: CNC Machined Steel and Aluminum Construction
• Color: Red
• Type: Suspension Coilover
• Style: Street Series
• Front spring rate: 8 kg/mm, Rear spring rate: 6 kg/mm
• Monotube Internal Construction
• Damping Force Adjustability: 32-way Compression & Rebound Simultaneous
  Damper Spec:
  Front : 110mm; stroke: 220mm length; M1 Valving Code
  Rear: 95mm stroke; 180mm length; A11 Valving Code
• Full Length Adjustability, Adjustable Ride Height

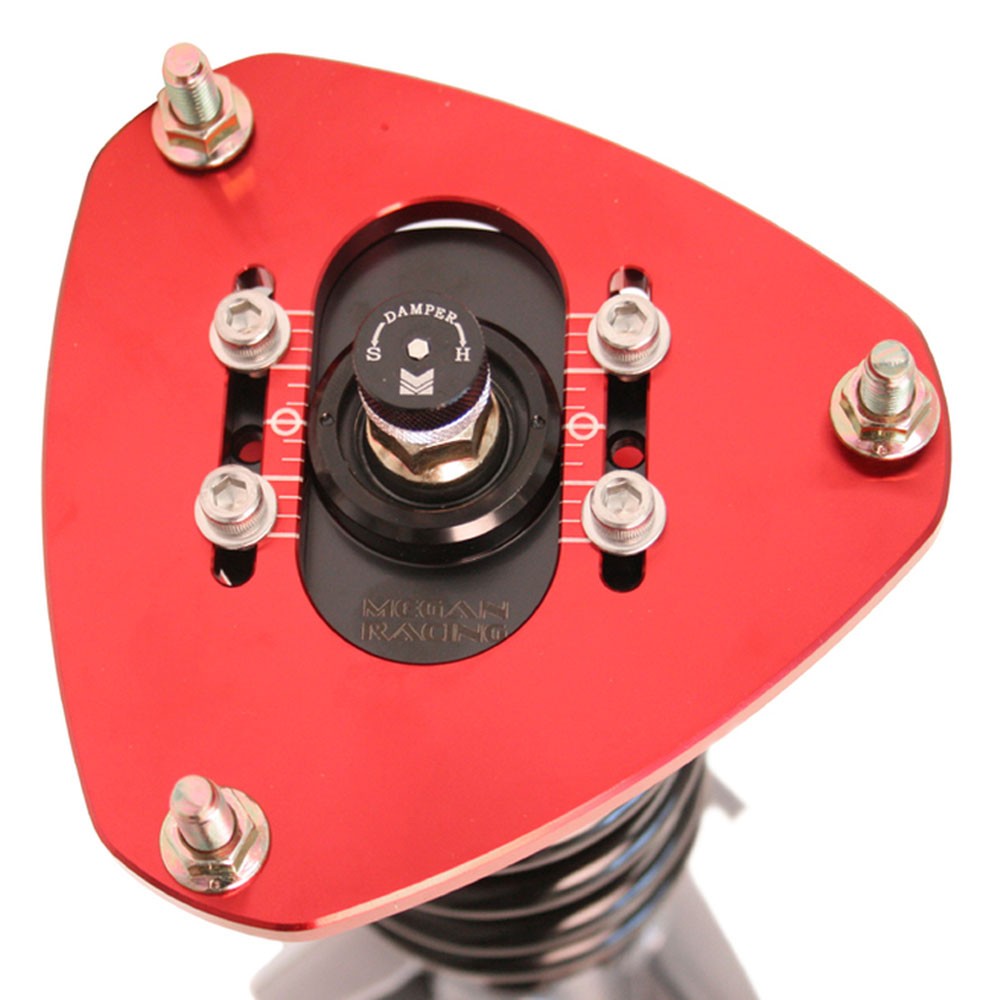

• Aggressive Spring Rates. Camber Adjustable Pillowball Front Top Mounts

Product Content:

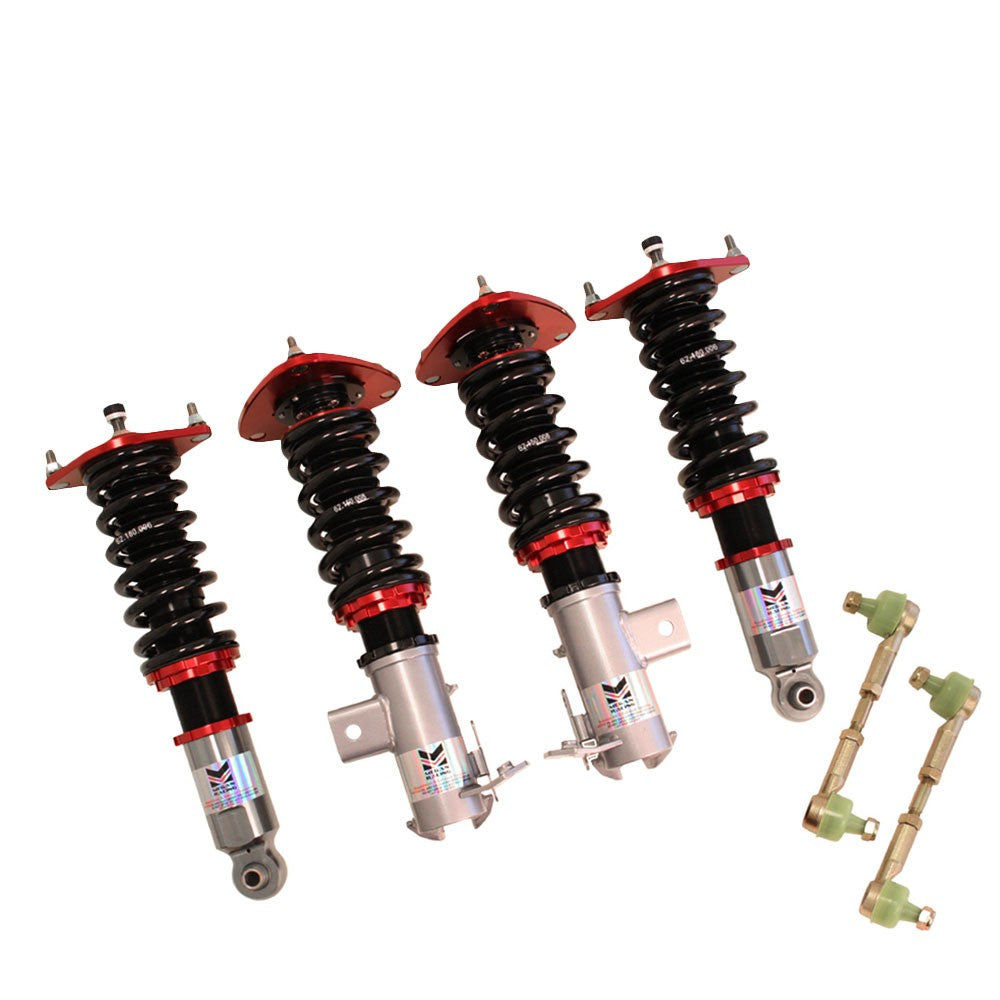

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

No Instruction, Professional Install Recommended

Cross Reference Number:
MR-CDK-SFR12, MR-CDK-SFR12, MRCDKSFR12
